HR 9843

type CH · family 201 · 4 windings · 192 g

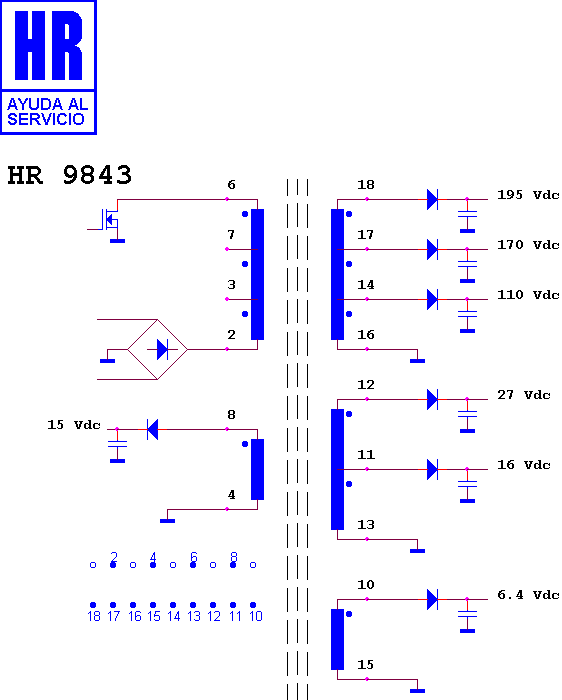

Schematic diagram for HR 9843 — schematic

Manufacturer equivalents (2)

HR 9843 · TR 07.213

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
