HR 9701

type CH · family 203 · 4 windings · 280 g

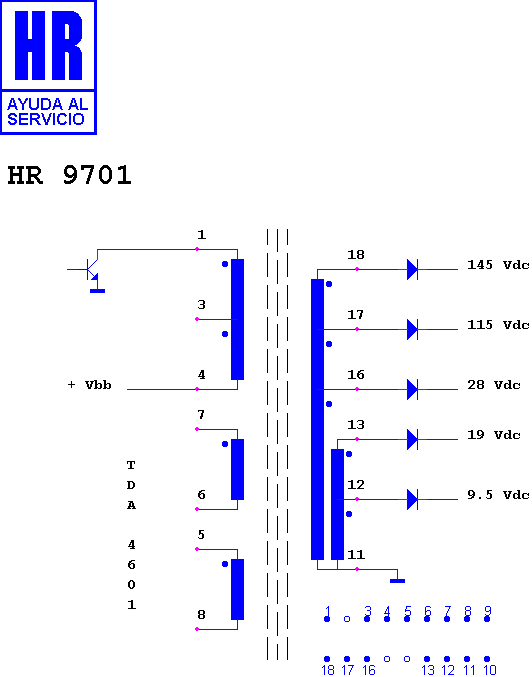

Schematic diagram for HR 9701 — schematic

Manufacturer equivalents (1)

32039701

Search this part in the full database
