HR 9658 C

type CH · family 205 · 171 g

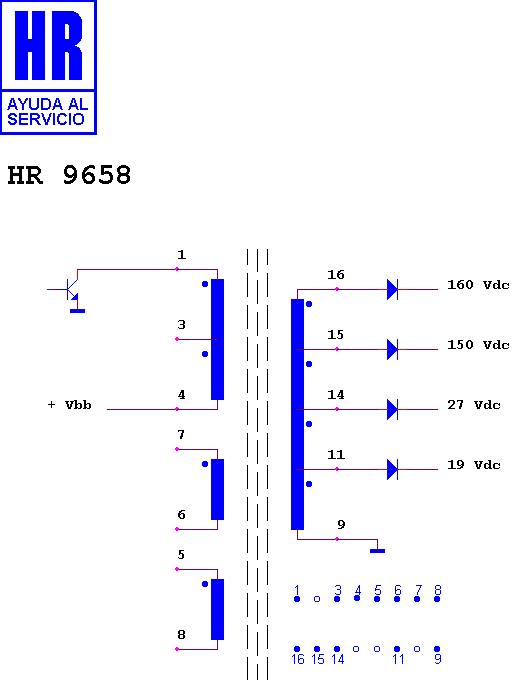

Schematic diagram for HR 9658 C — schematic

Manufacturer equivalents (2)

CF 5612 · CR 9658 C

Search this part in the full database
