HR 9562

type CH · family 209 · 3 windings · 278 g

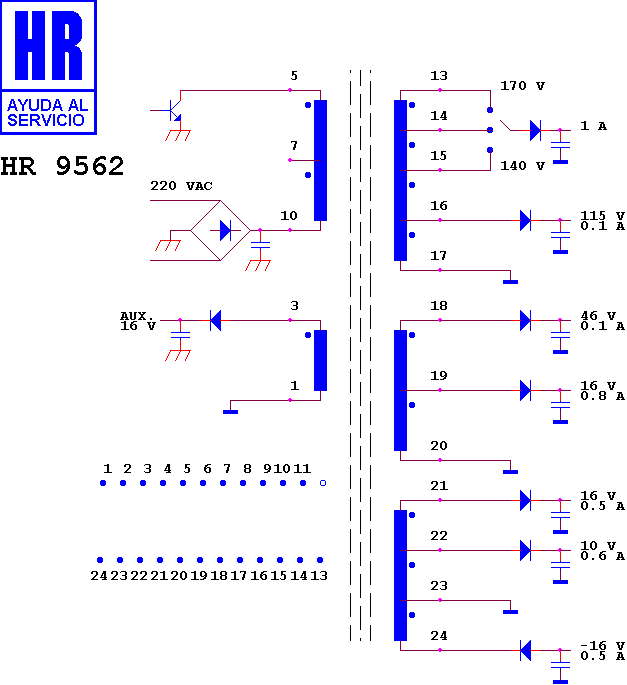

Schematic diagram for HR 9562 — schematic

Manufacturer equivalents (1)

HR 9562

Search this part in the full database
