HR 9496

type CH · family 276 · 3 windings · 122 g

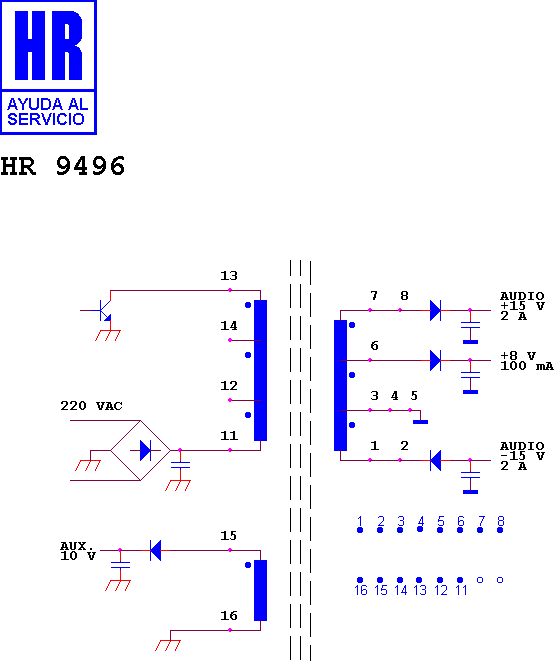

Schematic diagram for HR 9496 — schematic

Manufacturer equivalents (2)

RTRNZ0563BMZZ · Z 0563 BM

Search this part in the full database
