HR 9424

type CH · family 261 · 5 windings · 189 g

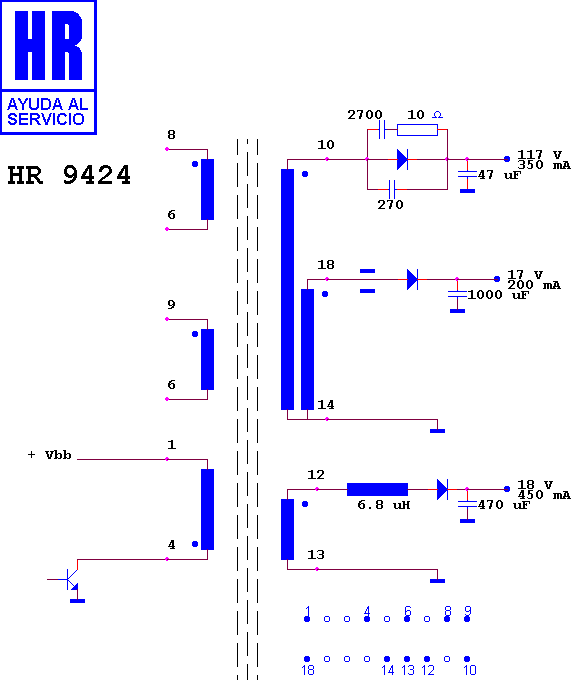

Schematic diagram for HR 9424 — schematic

Manufacturer equivalents (2)

093-01028/0.1 · 93-01028/0.1

Search this part in the full database
