HR 9208

type CH · family 204 · 4 windings · 105 g

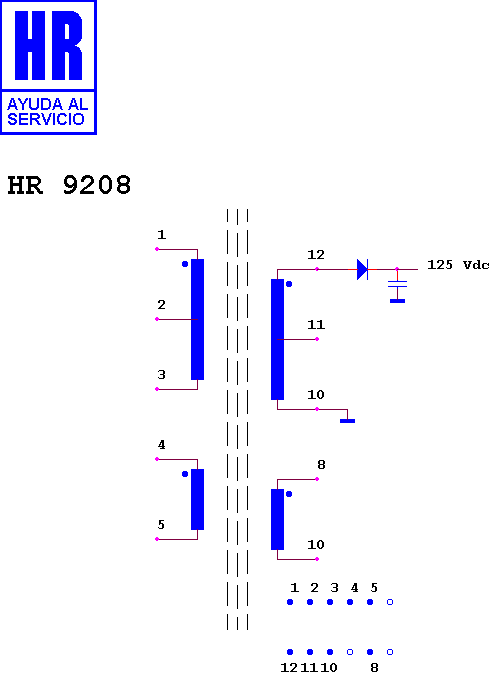

Schematic diagram for HR 9208 — schematic

Manufacturer equivalents (2)

83659.00 · 83659.01

Search this part in the full database
